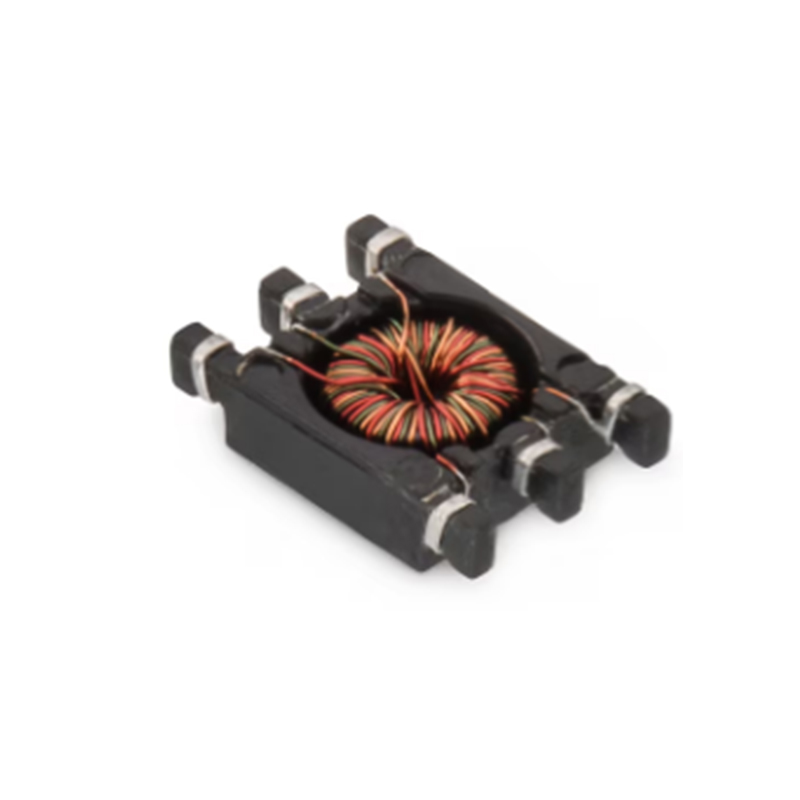

SMT Common Mode Line Filter

SMT Common Mode Line Filter Specifications

Power:1W~20KW

Application:Current compensated choke for data and signal lines,Power supply system,Signal and sensor lines,CAN,Suppression of common mode noise,Trifilar version for:Power Over Ethernet (PoE),Audio frequency (AF) noise

Core Materials:Mn-Zn Ferrite Core

Core Type:MnZn Toroid core

Efficiency:90%-98%

Brand:KSL

KSL's strengths and capabilities：

KSL is a highly capable and reputable transformer manufacturer with extensive expertise in both high-frequency and low-frequency transformer design and production. With a strong commitment to quality, innovation, and customer satisfaction, KSL has established itself as a reliable partner for businesses seeking top-tier power solutions. The company specializes in OEM (Original Equipment Manufacturer) services, offering customized transformer solutions tailored to meet the specific requirements of various industries, including consumer electronics, industrial automation, renewable energy, and telecommunications.

One of KSL’s key strengths lies in its deep technical knowledge across different transformer types, ensuring optimal performance in applications ranging from high-frequency switch-mode power supplies (SMPS) to low-frequency power distribution systems. The company utilizes advanced manufacturing techniques, rigorous quality control processes, and high-grade materials to produce transformers that deliver superior efficiency, durability, and reliability. Additionally, KSL’s experienced engineering team works closely with clients to develop innovative designs that enhance performance while reducing costs.

By combining cutting-edge technology with a customer-centric approach, KSL continues to be a trusted name in the transformer industry, providing high-quality products that meet global standards. Whether for standard or custom OEM projects, KSL demonstrates exceptional capability in delivering solutions that power the future.

Company development history：

1988 —— established DONGGUAN NANJIDA  Electronic components factory

2009 —— established DONGGUAN SHIJIE DEMAO Plastic CO.,LTD

2010 —— established DONGGUAN CHUANGYUAN  Metal Products CO.,LTD

2010 —— established  YUYAO KESHENGLONG ELECTRONICS CO.,LTD

2011 —— Obtained ISO9001-2008 Authentication  Successfully

2011 —— Obtained UL (E349406)Authentication and Obtained Import and export trade qualification

Factory Shipping Flowchart

FAQ

What is the best price?

Try to satisfy with your required target price.

What is your sample term?

Normally,we can provide 3-5 pieces of samples for high frequency transformer or inductor,or to be discussed.

Where to use?

Our company is widely specialized in magnetic electronic components, including SMD and through hole high and low frequency transformers, inductors and filters, involving 5G, communication, new energy, military, aerospace,  medical equipment, household appliances and other fields.

What is your trade assurance?

"100% product quality protection

100% product on time shipment protection.

100% payment protection for your covered amount."

Do you make customized product?

Yes, we make it.

About after sale service?

Usually one year,we can discuss it by email in case of there is any concerns.

What is the payment term?

T/T in advance, or please contact with us for further discussion.
